PERM-A-BARRIER® Universal Flashing & Sealant

PAB Universal Flashing & Sealant is designed for a variety of uses with GCP’s air and weather barrier systems.

Product Description

PERM-A-BARRIER® Universal Flashing & Sealant is designed for a variety of uses with GCP’s air and weather barrier systems.

Uses

PERM-A-BARRIER® Universal Flashing & Sealant is ideally suited for the following uses:

  • Sealing of finished terminations, edges of patches and overlaps in detail areas
  • Sealing penetrations through GCP air and weather barrier systems, such as plumbing or ductwork
  • As a sheathing joint treatment for GCP fluid-applied air and weather barrier membranes
  • Provides flashing at window and door rough openings
  • Counter flashes waterproofing and air barrier membranes
  • For AMMA 714-19, Level 3 compliant Liquid Flashing.

Product Advantages

  • No primer - fast and easy application with minimum surface preparation
  • No staining or residue rundown
  • High movement capability
  • Adhesion - Strong adhesion to common construction substrates, such as wood, block, concrete, OSB, glass mat sheathing, metal, vinyl and PVC
  • Compatibility - Compatible with most GCP air and weather barrier systems

Application Procedures

Safety, Storage and Handling Information

Users must read and understand the product label and Safety Data Sheets (SDS’s) for each system component before use. All users should acquaint themselves with this information prior to working with the material. Carefully read detailed precaution statements on the product labels and SDS’s before use. The most current SDS’s can be obtained from the GCP web site at gcpat.com.

PERM-A-BARRIER® Universal Flashing & Sealant is available in 20 fl oz (0.59 L) sausages and has a shelf life of 12 months from the date of manufacture when stored in the original unopened sausages between 40°F (4°C) and 80°F (27°C).

The Volatile Organic Compound (VOC) content is <20 g/L.

Surface Preparation

All surfaces must be clean, dry and free from dirt, grease oil, dust or other contaminants. PAB Universal Flashing & Sealant may be applied at temperatures 20°F (-6.67°C) and above.

Curing Time: PERM-A-BARRIER® Universal Flashing & Sealant is a moisture cure sealant. Ambient air at 50% relative humidity and at 73°F, Silyl
Modified Polyether sealants will generally skin in less than one hour and cure 1/16 of an inch per day. Lower temperature and lower relative humidity will significantly increase the skin time and cure time.

Product Application

Apply PERM-A-BARRIER® Universal Flashing & Sealant with a caulking or sausage gun. When used as a seal for finished terminations, edges of patches and overlaps in detail areas, level the bead with a trowel to a minimum 0.125 in. (3 mm) thickness and 0.5 in. (13 mm) to 1 in. (25 mm) width.

When sealing penetrations, apply a 1 in. (25 mm) fillet to the base of the penetration and overlap onto the GCP air and weather barrier material and penetrant a minimum of 2.5 in. (64 mm).

hen used to treat sheathing joints for GCP fluid-applied air and weather barrier membranes, completely fill the sheathing joint with sealant and then install a scratch coat of sealant with a margin trowel or similar onto the face of the sheathing approximately 1 in. (25 mm) on each side of the sheathing joint. Once the sealant is tack free, the fluid applied membrane may be applied, refer to the applicable product data sheets for detailed application instructions.

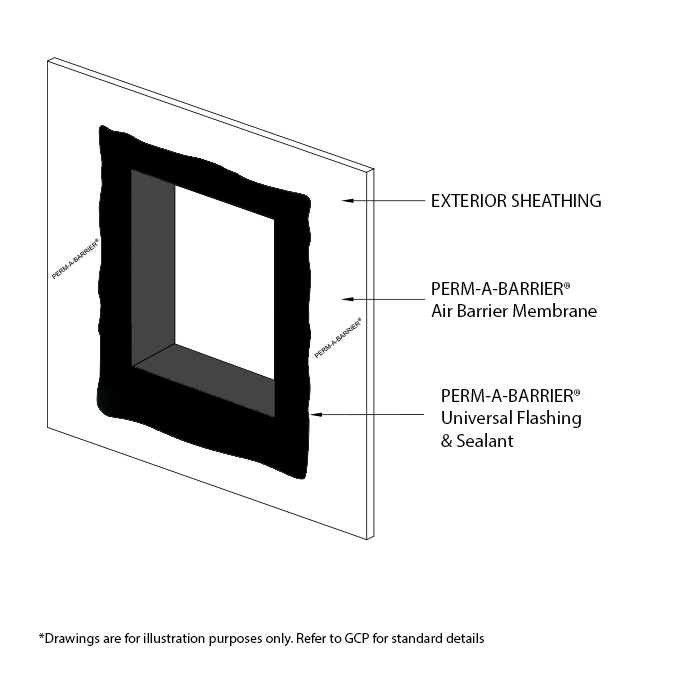

When used to treat rough opening of window/door penetrations, apply continuously at a minimum thickness of 25 mils, extended a minimum of 3” onto the surrounding wall surface.

Cleaning

Clean tools and equipment with mineral spirits. Mineral spirits is a combustible liquid and should be used only in accordance with the mineral spirits manufacturer’s safety recommendations. Do not use solvents to clean hands or skin.

Limitations

PERM-A-BARRIER® Universal Flashing & Sealant should not be used in the following applications:

  • PERM-A-BARRIER® Universal Flashing & Sealant has a maximum in-service temperature of 176° F (80°C).
  • Under all  rubberized asphalt based air and weather barrier membranes and flashing,  and as a sealant over PERM-A-BARRIER® VPS 30.
  • Not for use with building materials that bleed oils, plasticizers or solvents
  • Firestopping applications
  • Below grade

Supply

Property Typical Value
Color Black
Tack Free Time or skin time 1-2 hours
Cure Time 7-14 days*
Full Adhesion 7-14 days*

Typical cured properties after 7 days cure at 77ºF (25ºC), 50% R.H.
Lower relative humidity and temperature will significantly extend the curing time.

Property Typical Value Test Method
Hardness (Shore A) >35 ASTM C661
Elongation >600% ASTM D412
Ultimate Tensile Strength 150 psi ASTM D412
Modulus @ 100% Elongation 50 psi ASTM D412
Elastomeric Joint Sealants Class 50 ASTM C920
Water Vapor Permeance 15 perms ASTM E 96B1

Footnotes:
*Curing and full adhesion time will vary depending on temperature and humidity. lower temperature and humidity can significantly increase the curing time.
1. Tested at 10-12mils thick
