Product Description

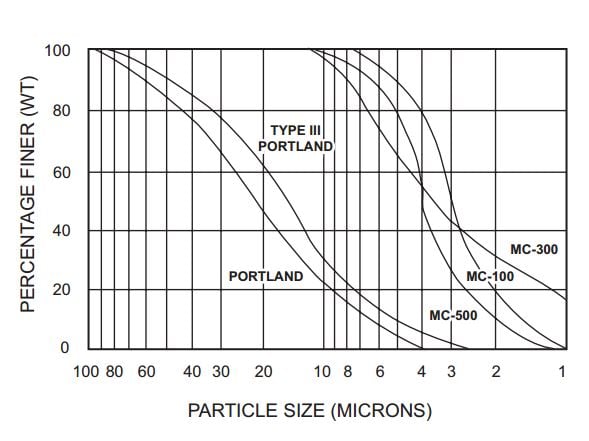

DE NEEF® MC 300® ULTRAFINE Cement is a blast furnace slag based cement composed of ultrafine particles, designed for injection into loose soils, rock, concrete, and down-hole applications. DE NEEF® MC 300® has a grain size of d95 equal to 6.0 microns and a d50 of 2.5 microns. The composition is comparable to high sulfate – resistant cements. It is suited for stabilizing or sealing all earthen foundations; especially for permanent structures such as tunnels, dams, deep foundations and oil storage tanks. Because DE NEEF® MC 300® cures into a hardened concrete, it causes no pollution to underground soils or water supplies.
DE NEEF® MC 300® is used with NS-200, a super plasticizer, to prevent clumping of microfine cements. It is generally used at 1-2 wt. % of the dry cement weight.
Product Advantages
- Excellent penetration into fine sands and finely cracked rock
- High cured strength- chemically activated to produce rapid curing to high strength
- Excellent durability- impermeable to ground water and seawater
- Low permeability- 10-9 cm/s permeability for neat grout.
Product Applications
- Geotechnical grouting
- Oil well remedial cementing
- Seal off underground streams
- Create cut off walls for dam construction
- Reinforce foundations in dams and buildings
- Reinforce and waterproof tunnel walls and roofs
- Create waterproof basins for reservoirs
- Facilitate all types of excavation
- Stabilize hazardous waste.
- Provide secondary containment for nuclear waste
Installation
A colloidal mixer is necessary for mixing DE NEEF® MC 300®. The order of addition to the tank is: water, NS-200, mix, then add DE NEEF® MC 300®.
Contact a DeNeef technical services representative for application specific installation procedures.
Packaging & Handling
DE NEEF® MC 300®:
55 lb bags
40 bags per pallet.
Store on pallets in dry and cool location.
NS-200: 3.5 gallon pails (35 lb).
Store in original containers at or above 60⁰F.
One Component Grout Mix
| DE NEEF® MC 300® GROUT MIX (55 LB BAG) | |||
|---|---|---|---|
| Batch Size | 5 Bages (275 lbs) | 4 Bages (220 lbs) | 3 Bages (165 lbs) |
| Water: Cement | 1:1 | 2:1 | 3:1 |
| Water | 33 gal. | 53 gal. | 60 gal. |
| NS-200 | 0.28 gal. | 0.22 gal. | 0.16 gal. |
| MC-300 | 275 lbs. | 220 lbs. | 165 lbs. |
| TOTAL | 44 gal. | 62 gal. | 67 gal. |
| TOTAL | 555 lbs | 668 lbs | 672 lbs |
Set time for above mixes is 3-5 hours
Health and Safety
Freshly mixed cement grout may cause skin injury. Avoid contact with skin where possible and wash exposed skin promptly with water. Use dust mask when breaking bags and mixing. Avoid eye contact, if exposed, rinse immediately with water and seek prompt medical attention. Always use protective clothing, gloves, and goggles during use. Do not ingest. Refer to SDS for detailed safety precautions.
In the event of an EMERGENCY call: CHEMTREC 800-424-9300.
Properties
| DRY PROPERTIES | ||
|---|---|---|
| Grain Size | 6.0 d95 | ASTM C204 |
| Grain Size | 2.5 d50 | ASTM C204 |
| Bulk Specific Gravity | 0.7 g/cm3 | ASTM C150 |
| Absolute Density | 2.9 g/cm3 | ASTM C150 |
| Volume | 0.041 gal/lb | ASTM C150 |
| Surface Area | 1.9 x 104 cm2/g | BET Method |
| MIXED PROPERTIES | WATER:CEMENT = 2:1 | |
|---|---|---|
| NS-200= 2% by weight . T=20⁰C | ||
| Marsh Funnel | Mix Time* | Run Out |
| 0 min | 29 s/dm3 | |
| 30 min | 30 s/dm3 | |
| 60 min | 30 s/dm3 | |
| 90 min | 30 s/dm3 | |
| Sedimentation | Mix Time* | By Volume |
| 30 min | 0% | |
| 60 min | 2% | |
| 90 min | 3% | |
| COMPRESSIVE STRENGTH (NEAT GROUT 2:1)** | ||
|---|---|---|
| 3d | 3.5 N/mm2 | 508 psi |
| 7d | 5.0 N/mm2 | 725 psi |
| 14d | 6.0 N/mm2 | 870 psi |
| 28d | 6.0 N/mm2 | 870 psi |
* Suspension mixed continuously at 350 rpm until tested.
** Measured on 4 cm x 4 cm x 16 cm prisms.
Note: The data shown above reflects typical results based on laboratory testing under controlled conditions. Reasonable variations from the above data may be expected.
