BITUTHENE® HRA NEOPRENE Data Sheet

Uncured neoprene rubber membrane for use in bituminous waterproofing systems

Product Description

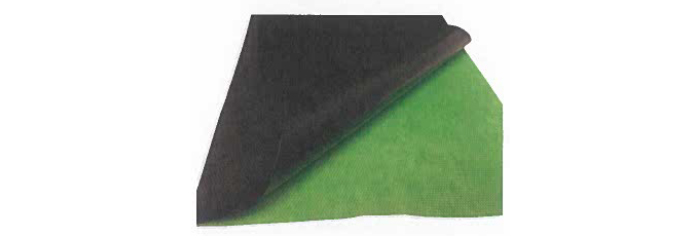

BITUTHENE® HRA NEOPRENE is an uncured neoprene rubber membrane designed to reinforce wall, base flashings, expansion joints and other details in hot rubberized asphalt waterproofing systems.

For other HRA system products see the individual product data sheets

Product Details

BITUTHENE HRA NEOPRENE is a thermoset neoprene rubber membrane used in conjunction with BITUTHENE HRA. BITUTHENE HRA NEOPRENE is an uncured sheet material that is easy to mold around penetrations and can be used to detail flashings, drains, transitions, irregular shapes, and expansion joints. It has excellent tensile and elongation strength and can easily withstand thermal expansion and contraction. BITUTHENE HRA NEOPRENE is typically placed within BITUTHENE HRA but can be used as a protection course in certain approved exposed conditions.

Roll Dimensions6” x 100’
12” x 100’
Standard Thickness60 mils (1.5mm)
Approximate Weight6” / 20lb, 12” / 40lb
Shelf lifemaximum 9 months from the date of manufacturing

System Components

BITUTHENE® HRA – Hot Rubber Membrane
BITUTHENE® HRA FABRIC– Polyester Reinforcement
BITUTHENE® HRA NEOPRENE 12” x 100’ – Neoprene for Flashing
BITUTHENE® HRA NEOPRENE 6” x 100’ – Neoprene for Flashing
BITUTHENE® HRA PROTECTION G – Fiberglass Protection Sheet
BITUTHENE® HRA PROTECTION P – Polyester Protection Sheet
BITUTHENE® ADHESIVE PRIMER B2 LVC - Primer
BITUTHENE® HRA CAP – Cap Sheet for Wall Flashing
For other BITUTHENE HRA products details, see the individual product data sheet.

Safety & Handling

BITUTHENE® products must be handled properly. Do not handle until all safety precautions and instructions have been read and understood. Refer to product label and SDS before use.  SDSs can be obtained from www.gcpat.com or by contacting your local representative.


STORAGE & USE

Rolls should be stored upright off the ground and completely protected from the weather. Do not attempt application if ice, snow, moisture, or dew are present or inclement weather is expected.  Do not use material that is 9 months old or has become inflexible and hard to mold.


APPLICATION

Remove green protective film from top of BITUTHENE HRA NEOPRENE prior to application of membrane. Apply BITUTHENE HRA at 90 mils (2.3 mm) and while hot install the BITUTHENE HRA NEOPRENE. Mold to shape as needed to flash transitions.  A minimum 2” (50.8 mm) overlap is required between sections of neoprene.  BITUTHENE HRA must be applied between membrane overlaps to completely seal the joints. Cover the neoprene with additional BITUTHENE HRA at about 125 mils (3.2 mm) to fully encapsulate it within the hot rubber.

Cold weather applications require special handling to prevent damage to the rolls and ensure satisfactory installation. Do not apply waterproofing systems over improperly prepared substrates or substrates that contain moisture. Rubberized asphalt temperature in the melter must be 380°-400°F (193°-204°C) to ensure proper adhesion.


Typical PROPERTIES after vulcanization

Test Description  Test Method  Results*
Tensile StrengthD412 Die C1484 PSI
ElongationD412 Die C267%
Tear ResistanceD412 Die C171 Lb./in
Brittleness Point @ - 40°FD2137Does not Break
Ozone Resistance No Cracks @ 7 X
168 Hrs./100pphm/104°F/50%
Ext.
D1149Magnification
Water Absorption, Max. Mass
166 Hrs. @ 158°F
D4718.50%

TECHNICAL ASSISTANCE & SERVICES

GCP provides technical assistance in the product selection, specification, and application guidelines for all GCP HRA systems. Field representatives are available for consultation in each region.

For more information, contact GCP Technical Services


gcpat.com | North America Customer Service: +1 (877) 423 6491
